| Warranty | 3 years or 10 years in hermetic packaging |
| Caliber | 12,7 mm |
| Bullet mass, g. | 44,1 |
| Bullet length, mm | 107,4 - 108 |
| Cartridge mass, g | 127 - 133 |
| Cartridge length, mm | 145,5 - 147 |
| Powder pressure, P max.avg MPa < | 333,3 |
| Quantity in box (case) | 10/60 |
| Case weight, kg | 8.52 |
| Average bullet velocity, V25, m/s | 860 |

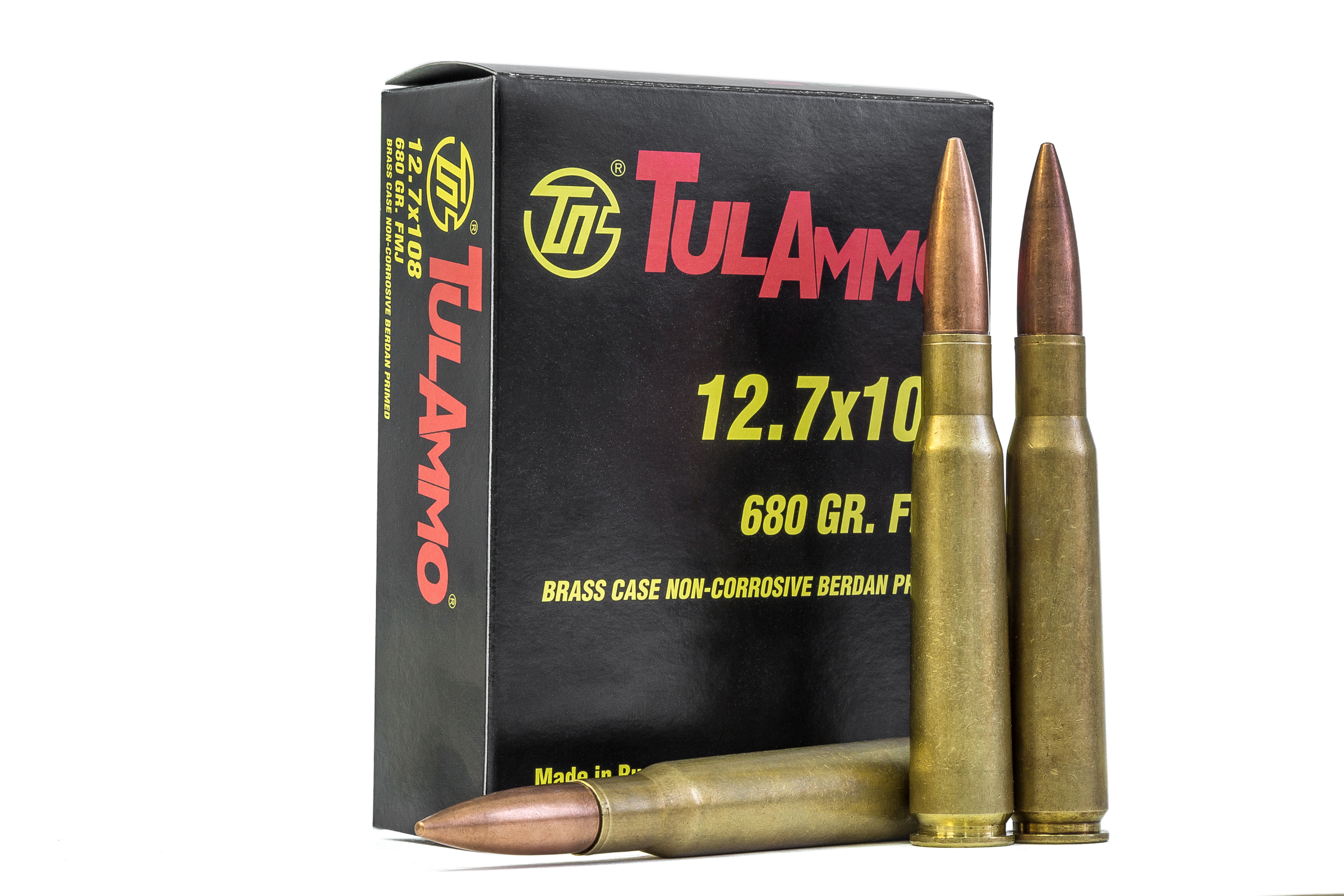

The cartridge 12,7x108 is used for sporting and hunting shooting.
The cartridge keeps its qualities under various climatic and weather conditions independent of the season and at the temperature range from -20°С to +50 °С.

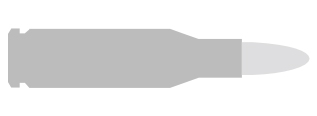

The cartridge case is bottle-shaped with non-projecting flange. The cartridge complies with CIP requirements.
B.C. (G1) = 0.728
|
Range |
Velocity, m/s |
Trajectory increases, cm |
Energy, E, J |
Wind drift at wind speed of 4 m/s, cm |
|
100 |
811 |
2 |
14470 |
1 |
|
200 |
758 |
7 |
12640 |
6 |
|
300 |
707 |
18 |
10997 |
15 |
|
400 |
659 |
34 |
9554 |
27 |
|
500 |
612 |
58 |
8240 |
44 |
|
600 |
568 |
89 |
7098 |
65 |
|
700 |
529 |
131 |
6157 |
88 |
|
800 |
489 |
187 |
5261 |
125 |
|
900 |
453 |
258 |
4515 |
164 |
|
1000 |
421 |
345 |
3899 |
209 |
|
1100 |
393 |
460 |
3398 |
261 |
|
1200 |
367 |
596 |
2963 |
320 |
|
1300 |
346 |
761 |
2634 |
386 |
|
1400 |
328 |
966 |
2367 |
459 |
|
1500 |
313 |
1210 |
2155 |
538 |
|
1600 |
300 |
1490 |
1980 |
623 |
|
1700 |
289 |
1823 |
1837 |
713 |
|
1800 |
280 |
2206 |
1725 |
808 |
|
1900 |
271 |
2635 |
1616 |
907 |
|
2000 |
264 |
3132 |
1533 |
1011 |
Warranty: 3 years or 10 years in hermetic packaging
Caliber: 12,7 mm
Bullet mass, g.: 44,1
Bullet length, mm: 107,4 - 108
Cartridge mass, g: 127 - 133
Cartridge length, mm: 145,5 - 147
Powder pressure, P max.avg MPa <: 333,3
Quantity in box (case): 10/60
Case weight, kg: 8.52
Average bullet velocity, V25, m/s: 860
